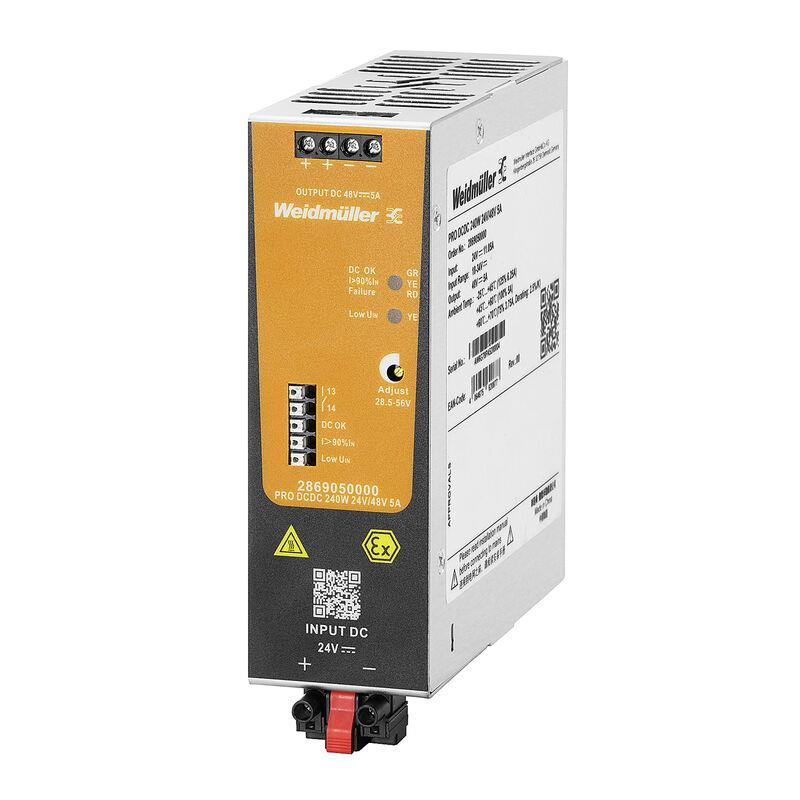

| Input Voltage | Output Voltage | Output Current | Power | Mounting Style |
| 14-32Vdc | 48Vdc | 5A | 240W | DIN Rail |
FEATURES:
-
High Efficiency & Power: Delivers up to 95% efficiency with above-average power performance for independent supply systems.
-
Voltage Compensation: Compensates for fluctuations from unregulated power supplies or long cables via galvanic isolation.
-
Adjustable Output & Protection: Features a potentiometer-adjustable 48V DC output (28.5V–56V) with built-in short-circuit and overload protection.
-
600% Peak Load Reserve: Utilizes advanced DCL technology to deliver 600% of rated current for a 15 ms boost duration.
-
Parallel Connection Capable: Supports direct parallel connection of up to 3 units for flexible system scalability.
-
Certified Safety Standards: Built to Protection Class III and fully compliant with EN 61558-2-16 and RoHS safety guidelines.
