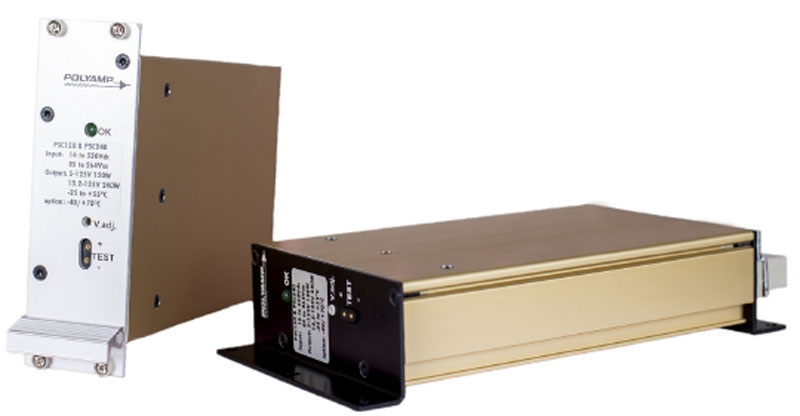

PSC200 24/24 24Vdc

POA
(ex. VAT)

Availability: Contact Us
Manufacturer: Polyamp



Input Voltage Output Voltage Output Current Power Mounting Style Output Current
18-32Vdc 24Vdc 10A 240W 19" Rack Mount


FEATURES:
European manufactured DC/DC Converter, suitable for a variety of applications.

Standard Features of:
  • CE mark, EMC, LVD, ROHS
  • Alarm circuit with relay
  • Accessible on front:
    • Output OK status green LED
    • Output voltage adjustment
    • Output voltage measurement
Operation:
  • Convection cooled
  • Operating temperature range -25 to +55°C
    • Optional –40°, +70°C (+85°C 10 min)
  • Fully encapsulated IP30, conformally coated
  • High efficiency > 88%
  • Output Over voltage limiter OVL
  • Conformal coating
  • Reverse input voltage protection
EMC Regulations:
  • EN IEC 61000-6-3, Emission.
  • EN IEC 61000-6-2, Immunity.
  • EN IEC 61000-4-3, 10 V/m (option 20V/m)
  • EN IEC 61000-4-4, ±4 kV.
  • EN IEC 61000-4-5 level 2 & 3.
  • EN 50121-3-2 train
