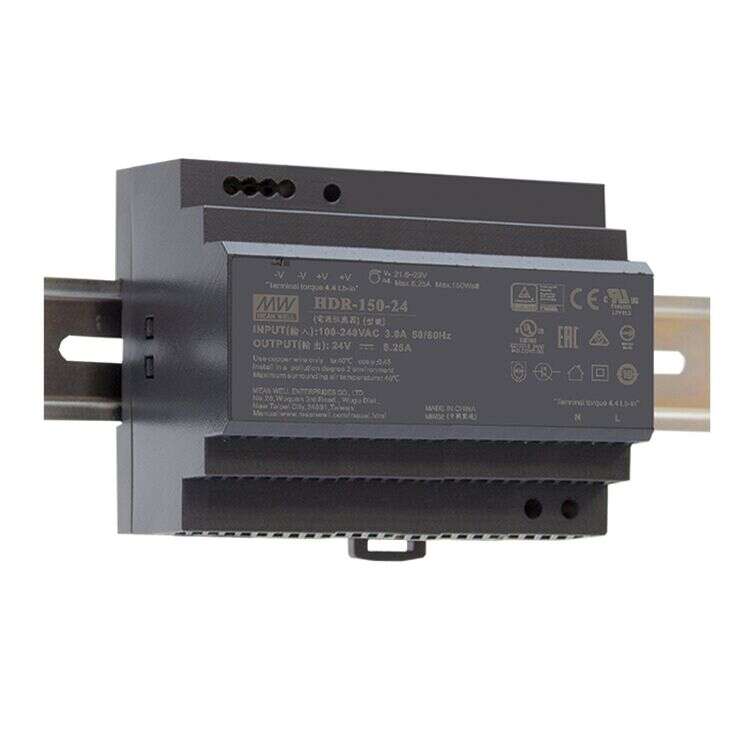

Mean Well HDR Series - Ultra Slim Step Shape DIN Rail Power Supplies
Mean Well's HDR Series of power supplies are a popular range of cost-efficent, but reliable power supplies. Designed for DIN Rail use, and with convection cooling, the slim design offers a simple solution for your DC power requirements. Available as a 15W output up to 150W, there are many options for integrators and designers that require a standard shape design.
HDR Series:
- Installation: Compatible with TS-35/7.5 or TS-35/15 mounting rails
- Width: 105mm (6SU) for space-saving cabinet installation
- Input Range: Full range AC input from 85VAC to 264VAC (277VAC operational)
- Compliance: Conforms to BS EN/EN61000-3-2 for harmonic current regulation
- Housing: Plastic housing design for electrical hazard prevention
- Efficiency: Up to 90.5% working efficiency
- Temperature Range: Operating temperature between -30°C and 70°C
- Protection: Complete protection functions included
- Certifications: IEC62368-1, UL62368-1, UL61010, BS EN/EN61558-2-16 compliant
HDR-15 Series:
- HDR-15-5 - 5Vdc 2.4A
- HDR-15-12 - 12Vdc 1.25A
- HDR-15-15 - 15Vdc 1A
- HDR-15-24 - 24Vdc 0.63A
- HDR-15-48 - 48Vdc 0.32A
HDR-30 Series
- HDR-30-5 - 5Vdc 3A
- HDR-30-12 - 12Vdc 2A
- HDR-30-15 - 15Vdc 2A
- HDR-30-24 - 24Vdc 1.5A
- HDR-30-48 - 48Vdc 0.75A
HDR-60 Series
- HDR-60-5 - 5Vdc 6.5A
- HDR-60-12 - 12Vdc 4.5A
- HDR-60-15 - 15Vdc 4A
- HDR-60-24 - 24Vdc 2.5A
- HDR-60-48 - 48Vdc 1.25A
HDR-100 Series
- HDR-100-12 - 12Vdc 7.1A
- HDR-100-12N - 12Vdc 7.5A
- HDR-100-15 - 15Vdc 6.13A
- HDR-100-15N - 15Vdc 6.5A
- HDR-100-24 - 24Vdc 3.83A
- HDR-100-24N - 24Vdc 4.2A
- HDR-100-48 - 48Vdc 1.92A
- HDR-100-48N - 48Vdc 2.1A
