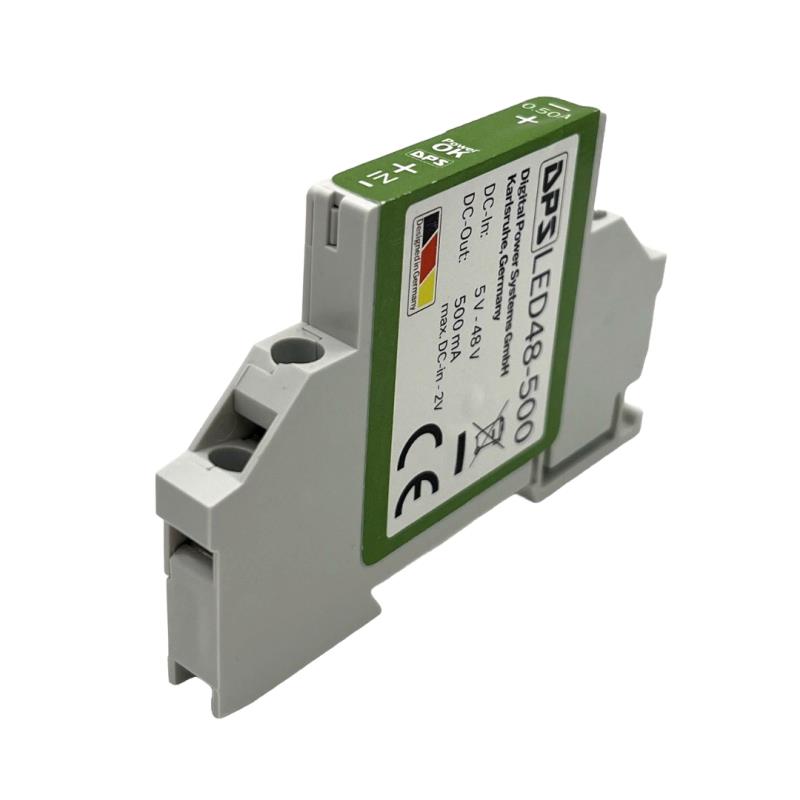

| Input Voltage | Output Voltage | Output Current | Power | Mounting Style |
| 5;-48Vdc | Input -2Vdc | 500mA | Variable | DIN Rail |
FEATURES:
-
Ultra-Slim Profile: Features a mounting width of just 8.8 mm on standard DIN rail.
-
No Electrolytic Capacitors: Built entirely without electrolytic capacitors to maximize the driver's overall operating life
. -
Electrical Protections: Includes an integrated input fuse, input reverse polarity protection (safeguarded down to -48V), and indefinite short-circuit and open-circuit resilience
. -
Transient Suppression: Equipped with dual transient voltage suppression (TVS) diodes—two SMAJ26A diodes in series on the input, and an SMAJ48A diode on the output
. -
Power Good LED: A built-in green indicator lights up on the front panel once the proper target output voltage and current are successfully achieved
. -
Environmental Range: Rated to run reliably at ambient temperatures ranging from -40°C to 50°C
.
