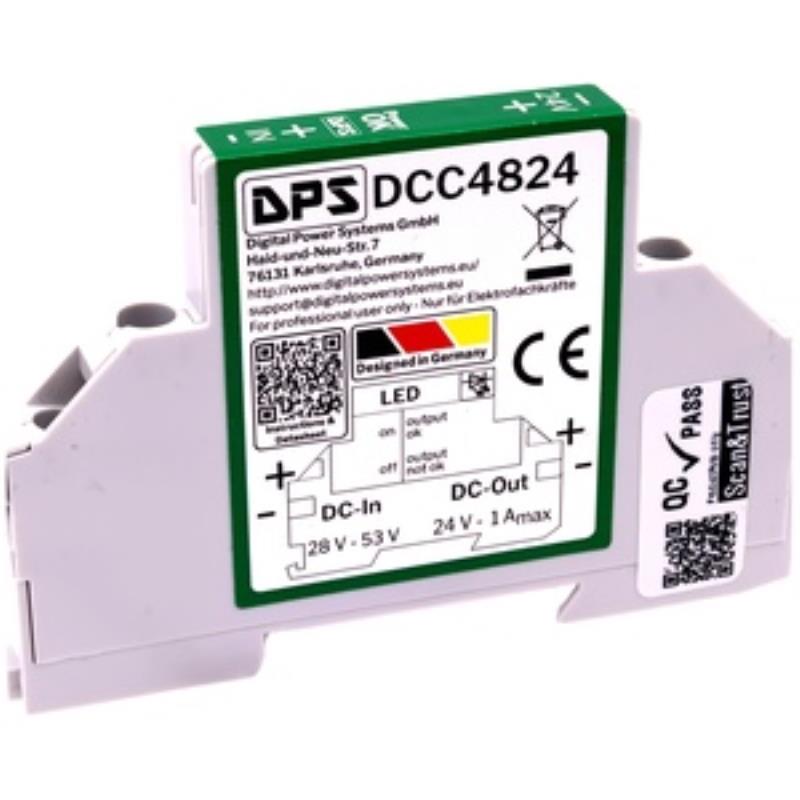

| Input Voltage | Output Voltage | Output Current | Power | Mounting Style |
| 28-48Vdc | 24Vdc | 1A | 24W | DIN Rail |
FEATURES:
-
Ultrathin Design: Only 8.8mm in width, saving significant space on standard DIN rail.
-
Robust Safety Features:
-
Input Reverse Polarity Protection: Safe against reverse connections up to -48V
. -
Short Circuit Proof: Can withstand a continuous short circuit on the output indefinitely
. -
Open Circuit Proof: Can run with no load indefinitely
. -
Transient Protection: Equipped with an input TVS protection diode (1SMA4758A) to suppress moderate transients
.
-
-
Power Good Indicator: A green LED on the front panel lights up when the output voltage is active and stable ("Power OK")
.
