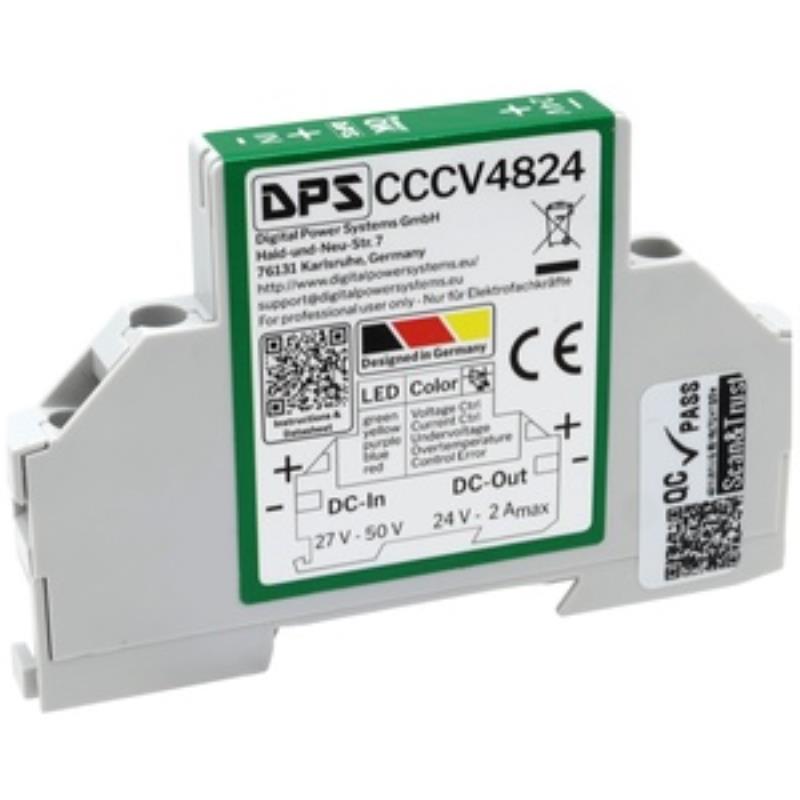

| Input Voltage | Output Voltage | Output Current | Power | Mounting Style |
| 27-50Vdc | 24Vdc | 2A | 48W | DIN Rail |
FEATURES:
Factory-Programmable Outputs: Features digitally programmable output voltage (27V to 50V) configurations to match precise application requirements
High-Efficiency Performance: Delivers a typical efficiency of 90% (up to 94% peak) to minimize energy loss and heat generation.

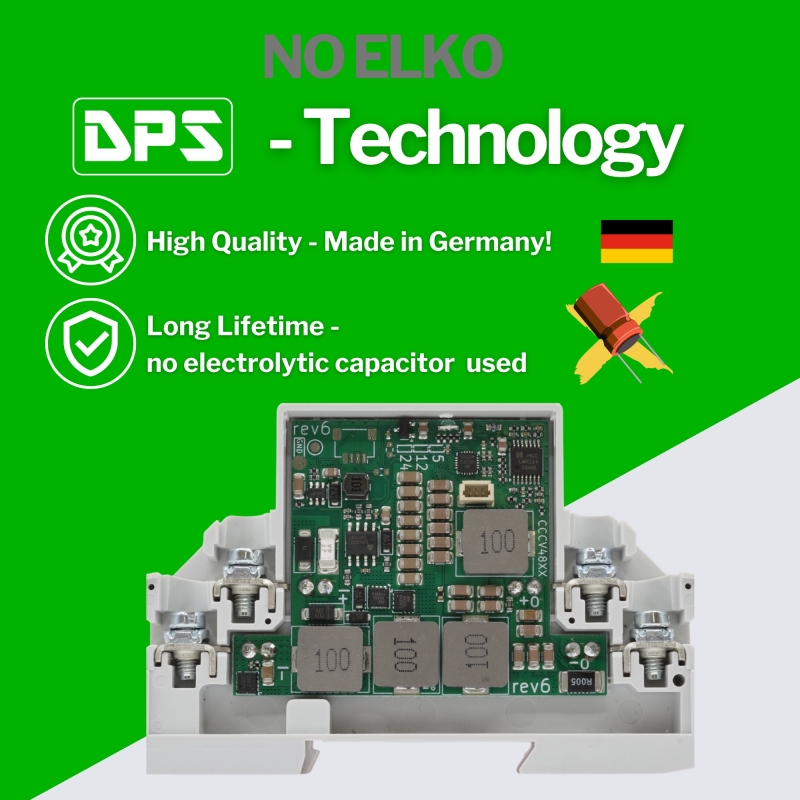

No Electrolytic Capacitors: Utilizes highly reliable, solid-state alternatives to eliminate the typical wear-out phases and thermal degradation associated with traditional electrolytic capacitors
Scalable Power & Redundancy: Supports output paralleling using external diodes to easily scale up power capacity or configure redundant power setups.
Intelligent Diagnostic LED: Equipped with a universal RGB LED that visually signals operational states, including constant voltage, constant current, undervoltage, and overtemperature.
Robust Protective Mechanisms:
-
Input Overvoltage: Equipped with an input Transient Voltage Suppressor (TVS) diode to clamp and suppress moderate line transients
. -
Input Reverse Polarity: Features integrated reverse polarity protection to prevent damage if input connections are reversed, with safety tolerances up to -50 V
. -
Output Short-Circuit: Fully short-circuit proof; the converter can withstand a direct output short indefinitely without damage
. -
Open-Circuit Resilience: Safely operates under open-circuit (no load) conditions for an unlimited duration
. -
Thermal Protection: Features internal temperature monitoring with thermal shutdown to automatically stop operation and protect the device if safe limits are exceeded.
-
Programmable Undervoltage Lockout (UVLO): Digitally configurable UVLO that automatically disables the device if the input voltage drops below critical thresholds to prevent unstable system behavior
.
